What Are Oil Filled Cables?
Oil filled cables are high-voltage power transmission cables insulated with pressurized oil. This unique construction improves dielectric strength, enhances cooling efficiency, and prevents void formation within the cable’s insulation. These cables are specifically designed for long-distance, high-capacity electricity transmission, making them ideal for use in urban areas, coastal locations, and underground systems.
In China, Wrindu leads the manufacturing, testing, and inspection of oil-filled cables, ensuring they meet international standards such as IEC and CE. Wrindu’s expertise in crafting these cables guarantees their performance for critical infrastructure projects, ensuring consistent power delivery across metropolitan grids, industrial facilities, and offshore power systems.
How Do Oil Filled Cables Work?
An oil-filled cable consists of a copper conductor, oil-impregnated paper insulation, a metal sheath, and a pressurization system with oil reservoirs. The pressurized oil acts as both an insulator and a coolant, preventing void formation and maintaining consistent dielectric properties. It also dissipates heat generated during high-load conditions, ensuring the cables perform reliably over time.
Manufacturers like Wrindu use automated systems to maintain strict control over oil purity and impregnation processes. Advanced techniques such as vacuum drying, automated oil-filling chambers, and real-time monitoring ensure optimal insulation saturation, which helps prevent partial discharges and cable aging.
Types of Oil Filled Cables
Oil-filled cables are available in three primary types:
-
Self-contained Oil Filled (SCOF): Sealed cables ideal for shorter circuits.
-
Pipe-type Oil Filled (PTOF): Designed for long-distance, high-voltage use, typically in harsh environments.
-
Low-pressure Oil Filled (LPOF): Suitable for confined urban areas where pressure management is crucial.
Each type is tailored for specific installation environments and load requirements, ensuring flexibility and efficiency across various projects.
Why Are Oil Filled Cables Still Preferred?
Despite the rise of alternatives like XLPE (cross-linked polyethylene) cables, oil-filled cables are still preferred for ultra-high-voltage systems. Their proven reliability, moisture resistance, and excellent performance under thermal and mechanical stress make them a better option in critical infrastructure applications. They also resist partial discharge and overload tolerance, ensuring a longer lifespan compared to other cable types.
Wrindu, a leading manufacturer and supplier, continues to provide oil-filled cable systems that excel in high-voltage environments, submarine installations, and urban power distribution.
Benefits of Oil Filled Cables
Oil-filled cables offer numerous advantages, including:
-
Superior dielectric strength for high-voltage transmission.
-
Reduced insulation breakdown risk and longer service life.
-
Effective cooling through oil circulation.
-
Exceptional mechanical flexibility to withstand environmental stress.
-
Long-term operational stability with minimal maintenance.
These benefits make oil-filled cables ideal for challenging installations, including underwater power transmission, heavy industrial sites, and renewable energy plants.
Routine Maintenance and Testing
Routine testing and maintenance of oil-filled cables are essential to ensure continuous performance. Common tests include insulation resistance, dielectric loss, and oil pressure monitoring. Regular maintenance helps prevent insulation breakdown, excessive temperature rise, and unexpected failures.

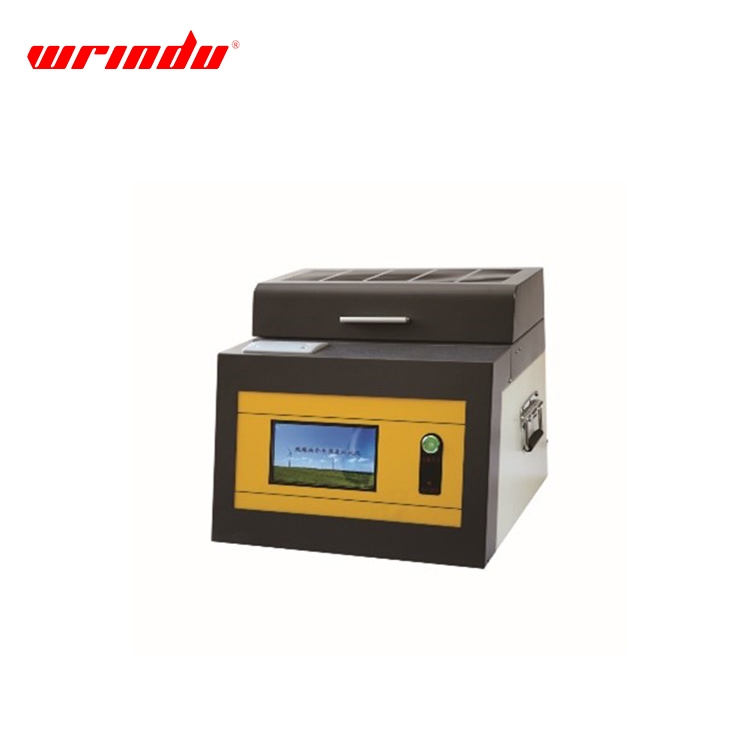

Wrindu provides advanced testing solutions to monitor and maintain oil-filled cables, ensuring optimal performance through real-time diagnostics and oil system monitoring.
Custom OEM Solutions to Enhance Performance
Custom OEM solutions are available to further enhance oil flow control, pressure balance, and insulation uniformity in oil-filled cables. Tailored designs also optimize integration with cooling units, monitoring sensors, and other accessories, improving overall performance and longevity in large-scale operations.
Oil Filled Cables – The Future of Power Transmission
As the demand for reliable, efficient power transmission continues to grow, oil-filled cables remain an essential component of critical energy infrastructure worldwide. By offering unmatched insulation reliability, overload tolerance, and long service life, these cables continue to be the preferred solution for high-voltage power systems.
Wrindu’s advanced manufacturing and testing capabilities ensure that oil-filled cables meet the highest standards, enabling companies to maintain safe, sustainable, and efficient power networks.
