The MM2560P47CV operates across a frequency range of 2.5 GHz to 6 GHz, delivering a typical output power of 50 W with a gain of 47 dB. Centered on a solid-state Class AB design, this product achieves stable, efficient, and reliable power amplification performance across an ultra-wideband spectrum, establishing itself as a flagship model within the company’s broadband SSPA product line.

Broadband Coverage

The frequency range of the MM2560P47CV extends from 2.5 GHz to 6 GHz, providing complete coverage of the S-band, C-band, and the intermediate transition bands. This broadband capability allows it to simultaneously support a diverse array of communication, radar, and electronic warfare systems, thereby reducing the number of distinct amplifier models required for a given equipment platform and minimizing both spare parts inventory and system integration complexity.

Power Performance

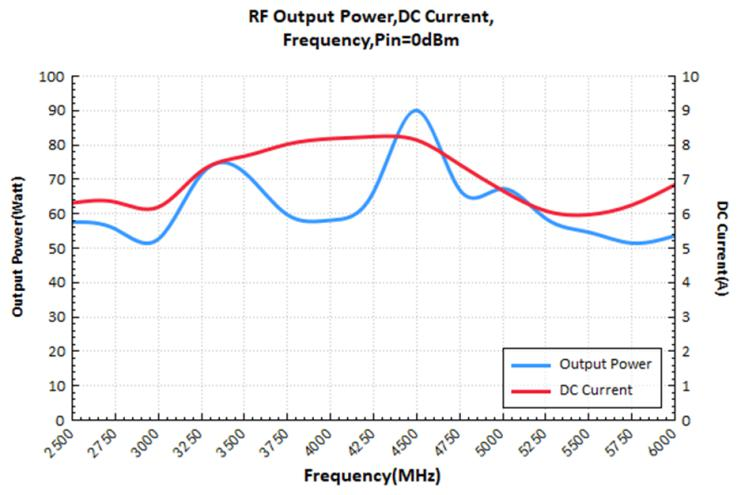

The MM2560P47CV delivers a typical output power of 50 W and operates in Continuous Wave (CW) mode. This makes it ideally suited for applications requiring continuous signal transmission—such as communication jamming, test signal generation, and RF burn-in testing.

Robust Design

Compact Mechanical Structure: With physical dimensions of just 160 mm × 100 mm × 25 mm, this amplifier features a highly compact design—particularly for a broadband amplifier in the 50 W power class. This size advantage facilitates easy integration into chassis, racks, or portable equipment, making it especially suitable for space-constrained platforms.

SMA RF Interfaces: The unit utilizes industry-standard SMA connectors, ensuring seamless compatibility with a wide range of microwave components and test cables. This eliminates the need for adapters, thereby reducing insertion loss.

Comprehensive Built-in Protection: The amplifier features an integrated over-temperature protection circuit; should the module’s internal temperature exceed a safe threshold, the system automatically reduces the output power or cuts off the amplification path to prevent thermal damage. Additionally, the unit incorporates built-in protection against high VSWR (Standing Wave Ratio), over-voltage, and over-current conditions.

Solid-State Class AB Design: Based on a solid-state Class AB amplifier architecture, the design strikes an optimal balance between efficiency and linearity, while simultaneously inheriting the inherent advantages of solid-state amplifiers—namely, high reliability and a long operational lifespan. 04 Manufacturing Assurance

Typical Applications:

• Electronic Warfare
• Test & Measurement
• Broadband Communication Systems

For detailed datasheets, price quotes, or sample testing, please visit the product page to download the datasheet, or contact the Mars RF Sales and Technical Support team directly.
