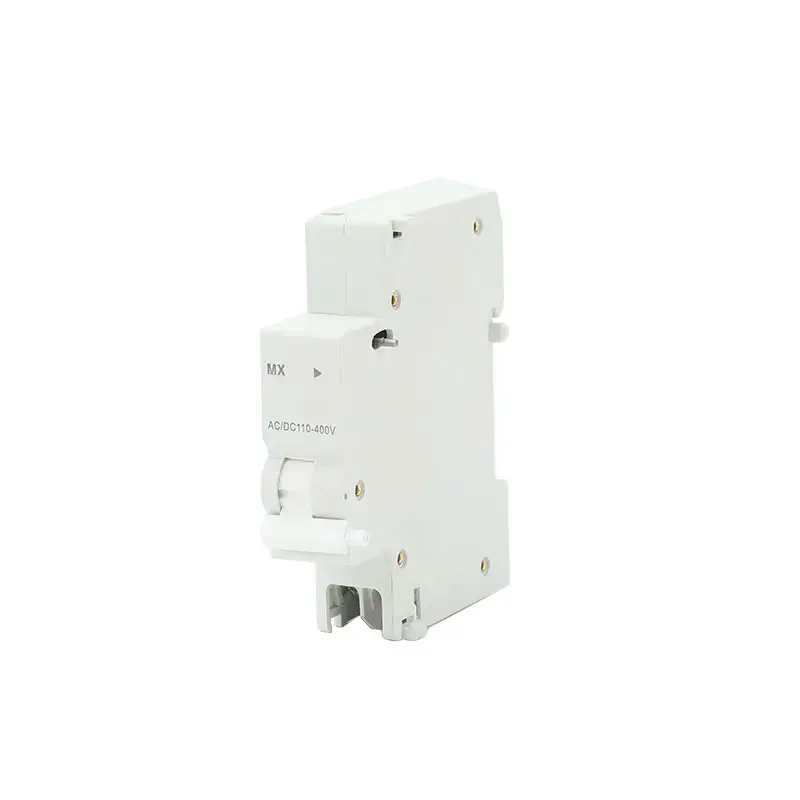

Shunt trip release ACC JCMX MX is a dedicated device designed to enhance the safety and functionality of electrical systems. The main function of this product is a shunt release, which can remotely open the circuit breaker when a specific voltage is applied. Unlike other devices that may include auxiliary feedback mechanisms, the ACC JCMX MX adopts a more efficient and streamlined design, which is ideal for applications where simplicity and reliability are important.
A standout feature of the Shunt trip release ACC JCMX MX is its ability to operate under a wide range of voltage conditions. Its rated voltages are AC230V and AC400V (50/60Hz), as well as DC24V and DC48V. This versatility ensures that the device can be integrated into a variety of electrical systems to meet different operating requirements. The rated impulse withstand voltage of 4000V (1.2V/50V) further highlights the ruggedness of the product, making it suitable for environments where surges may occur.
Shunt trip release ACC JCMX MX features a special locking design for easy installation and can be installed on the left side of an MCB (miniature circuit breaker) or RCBO (residual current circuit breaker). This feature not only simplifies the installation process, but also makes the layout in the distribution cabinet more organized and efficient. Its compact design, with a single-pole width of only 18 mm, ensures that the device can be easily installed in small spaces without compromising performance.
In terms of durability, the Shunt trip release ACC JCMX MX has excellent mechanical and electrical life ratings. With an electrical and mechanical life rating of 4,000 cycles, the device is able to withstand the rigors of daily use. Its insulation rating of 500V and insulation test voltage of 2kV for 1 minute ensure compliance with strict safety standards. A pollution degree of 2 indicates that the device is suitable for moderately polluted environments, further enhancing its suitability.
Shunt trip release ACC JCMX MX has an IP20 protection rating, which is sufficient to protect against solid objects with a diameter greater than 12 mm, but not against the intrusion of water. This protection rating is generally suitable for indoor applications, provided that the equipment is not exposed to harsh environmental conditions. ACC JCMX MX shunt trip unit is a reliable and efficient solution for remote circuit breaker operation and an indispensable component of modern electrical systems.
