Guide To Selecting A Residual Current Circuit Breaker With Appropriate Operating Current

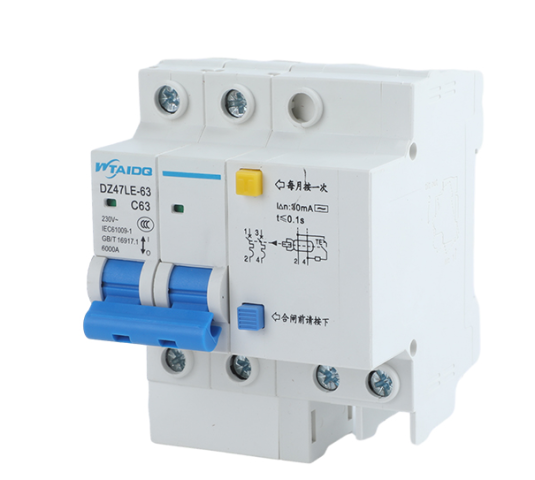

When it comes to electrical safety, choosing a residual current circuit breaker with the appropriate operating current is crucial. Residual current circuit breakers, also known as residual current devices (RCD), are designed to protect against the risk of electric shock and fire caused by ground faults. Selecting the correct RCD for your specific application is critical to ensuring the safety of people and property.

The first step in selecting an appropriate residual current circuit breaker is to determine the operating current required by your electrical system. This can be done by evaluating the total load on the circuit and determining the maximum current that may leak to ground. It is important to consider normal operating current and any potential transient currents that may occur.

Once the operating current is determined, the appropriate RCD type can be selected. There are different types of RCDs available, including Type AC, Type A and Type B, each type is designed to provide protection against a specific type of fault. For example, Type AC RCDs are suitable for general purpose applications, while Type A RCDs are designed to provide additional protection against pulsating DC currents. Type B RCDs provide the highest level of protection and are suitable for more sensitive environments such as medical facilities and data centers.

In addition to selecting the correct type of RCD, it is also important to consider the sensitivity of the device. RCDs are available in different sensitivity levels, typically ranging from 10mA to 300mA. Selecting the appropriate sensitivity level depends on the specific requirements of the electrical system and the level of protection required.

In addition, it must be ensured that the selected RCD complies with relevant safety standards and regulations. Look for RCDs that are certified by an accredited testing agency and meet the necessary performance and safety requirements.

In short, choosing a leakage circuit breaker with appropriate operating current is crucial to ensuring electrical safety. By accurately determining the operating current, selecting the appropriate RCD type and sensitivity, and ensuring compliance with safety standards, you can effectively prevent shock and fire hazards in your electrical system.
