FEP Encapsulated Incoloy 825 Hydraulic Control Line Flatpack

FEP Encapsulated Incoloy 825 Hydraulic Control Line Flatpack

Short Description:

Control lines have undergone extensive development, including crush testing and high-pressure autoclave well simulation. Laboratory crush tests have demonstrated the increased loading under which encapsulated tubing can maintain functional integrity, particularly where wire-strand “bumper wires” are used.



Typical Tubing Size

Outside diameter of control lines is mainly 1/4’’ (6.35mm).

Wall thicknesses: 0.035’’ (0.89mm), 0.049’’ (1.24mm), 0.065’’ (1.65mm)

Control line tubing is available in lengths from 400 feet (122 meters) to 32,808 feet (10,000 meters). No orbitally butt welds.

Other specifications (1/8’’ to 3/4’’) are available on request.

Product Display

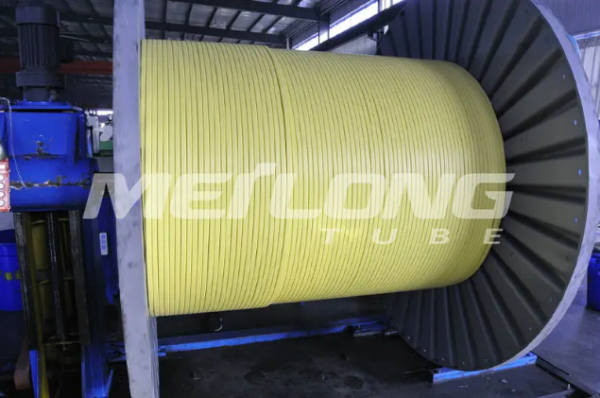

FEP Encapsulated Incoloy 825 Hydraulic Control Line Flatpack (1)
FEP Encapsulated Incoloy 825 Hydraulic Control Line Flatpack (2)

Alloy Feature

Characteristics

Excellent resistance to reducing and oxidizing acids

Good resistance to stress-corrosion cracking

Satisfactory resistance to localized attack like pitting and crevice corrosion

Very resistant to sulfuric and phosphoric acids

Good mechanical properties at both room and elevated temperatures up to approximately 1020° F

Permission for pressure-vessel use at wall temperatures up to 800°F

Rectangular Profiles Of Flatpack Encapsulation

1/4’’ OD, 2 lines 0.710’’ x 0.410’’ (18.0mm x 10.4mm)
1/4’’ OD, 3 lines 0.990’’ x 0.410’’ (25.1mm x 10.4mm)
3/8’’ OD, 2 lines 0.960’’ x 0.535’’ (24.4mm x 13.6mm)
1/2’’ OD, 2 lines 1.200’’ x 0.660’’ (30.5mm x 16.8mm)

Dimensional Tolerance

ASTM B704 / ASME SB704, Incoloy 825, UNS N08825
ASTM B751 / ASME SB751
Size OD Tolerance OD Tolerance WT
1/8’’≤OD<5/8’’ (3.18≤OD±0.004’’ (±0.10 mm)±12.5%
5/8≤OD≤1’’ (15.88≤OD≤25.4 mm) ±0.0075’’ (±0.19 mm) ±12.5%
Meilong Standard
Size OD Tolerance OD Tolerance WT
1/8’’≤OD<5/8’’ (3.18≤OD±0.004’’ (±0.10 mm)±10%
5/8≤OD≤1’’ (15.88≤OD≤25.4 mm) ±0.004’’ (±0.10 mm) ±8%
ASTM B423 / ASME SB423, Incoloy 825, UNS N08825
Size OD Tolerance OD Tolerance WT
1/8’’≤OD<3/16’’ (3.18≤OD+0.003’’ (+0.08 mm) / -0±10%
3/16≤OD<1/2’’ (4.76≤OD+0.004’’ (+0.10 mm) / -0±10%
1/2’’≤OD≤1’’ (12.7≤OD≤25.4 mm) +0.005’’ (+0.13 mm) / -0 ±10%
Meilong Standard
Size OD Tolerance OD Tolerance WT
1/8’’ ≤OD<3/16’’ (3.18≤OD+0.003’’ (+0.08 mm) / -0±10%
3/16≤OD<1/2’’ (4.76≤OD+0.004’’ (+0.10 mm) / -0±10%
1/2’’≤OD≤1’’ (12.7≤OD≤25.4 mm) +0.004’’ (+0.10 mm) / -0 ±8%
