Construction site: Jiangyin City, Jiangsu Province
Pipeline diameter: Φ 406mm
Construction time: October 2012
Homework type: Whole pipe protection, Yangtze River crossing
The Yangtze River Crossing Project of China Petroleum Pipeline Bureau Crossing Branch is the first project in China to use epoxy fiberglass reinforced plastic FRP for overall pipe protection, and it is also the longest pipeline crossing length in China so far, with a crossing length of 3400 meters. The survey shows that there are many rocks in the crossing area, and the geological conditions are relatively harsh. To ensure the safety of pipeline use and prevent the anti-corrosion layer at the pipeline joint from being scratched or peeled off, our company has developed a special modified epoxy fiberglass product specifically for pipeline crossing.
The success of the crossing project indicates whether the problems that have always existed in the crossing project can be thoroughly solved. Therefore, the importance of this project is self-evident, and CCTV has been tracking and reporting on it. After two days and one night of one-time crossing, the inspection showed that the epoxy fiberglass outer protective layer was intact and the performance indicators of the anti-corrosion layer did not deteriorate, indicating that the epoxy fiberglass effectively protected the 3PE anti-corrosion layer during the crossing process, and received unanimous praise from experts from pipeline research institutes, design institutes, and owners. The successful application of epoxy fiberglass indicates that the problems that have plagued pipeline crossing construction have been fundamentally solved, filling the gap in the field of external protection products for crossing pipelines.
Site Work Picture

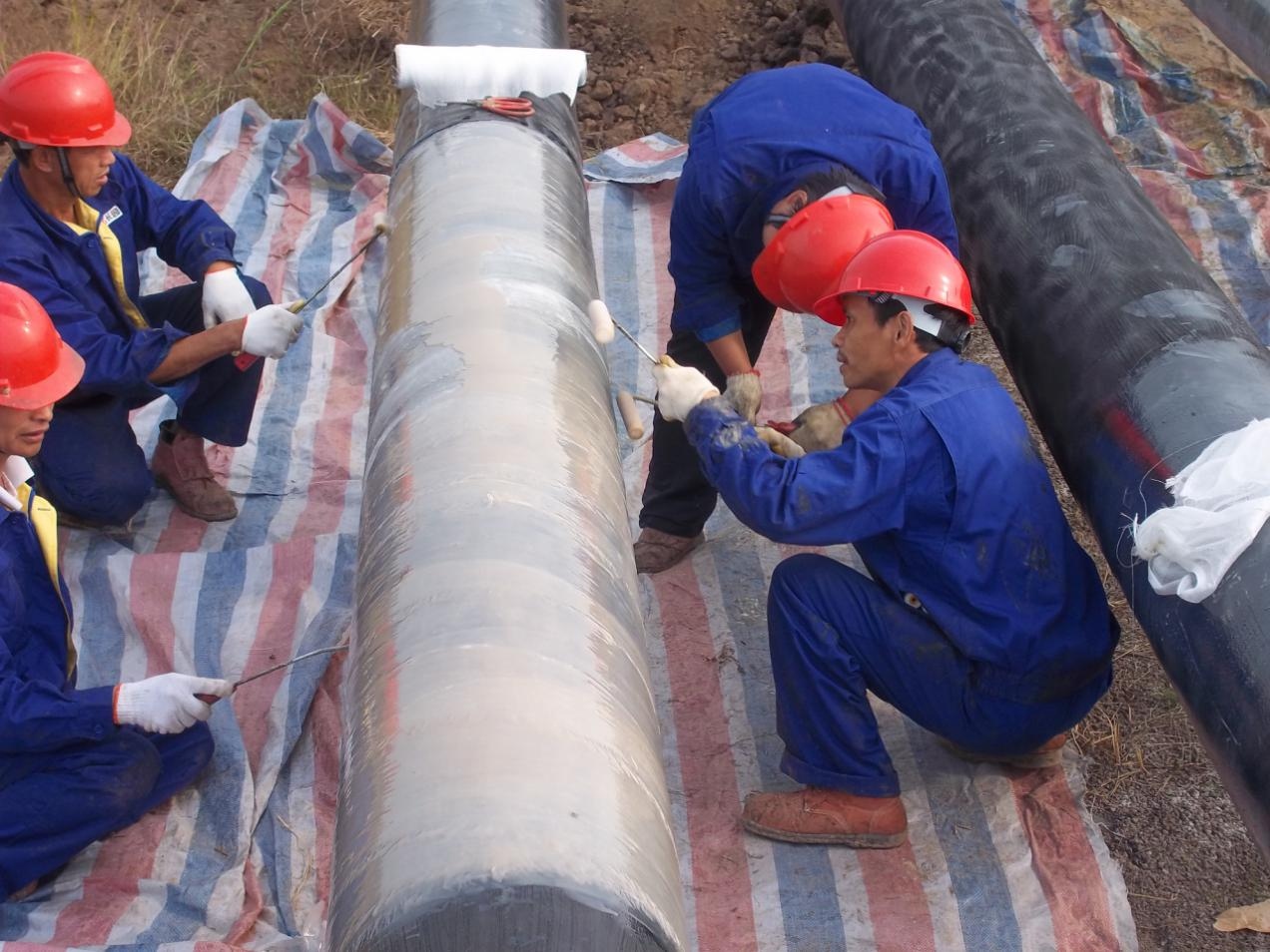

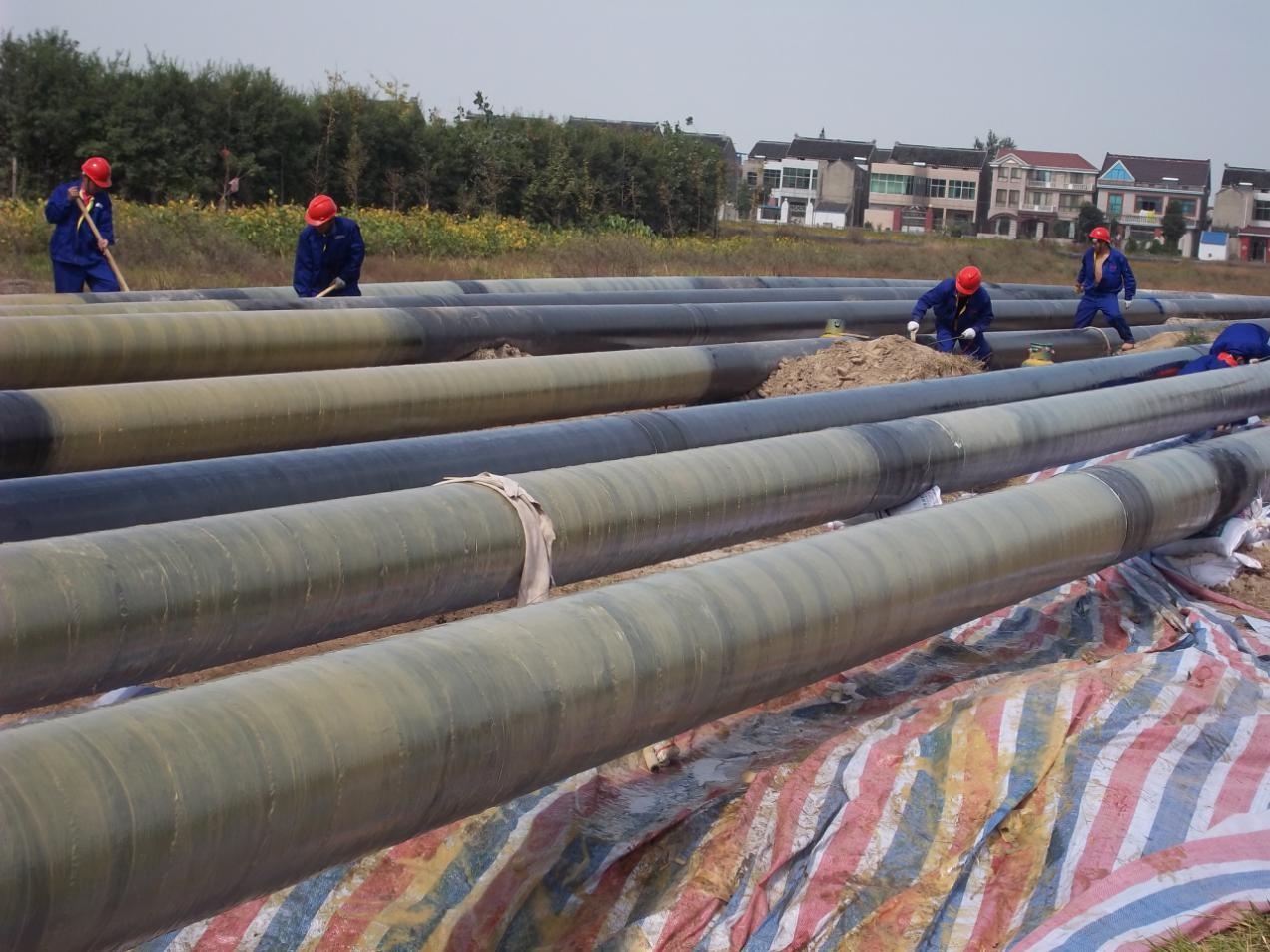

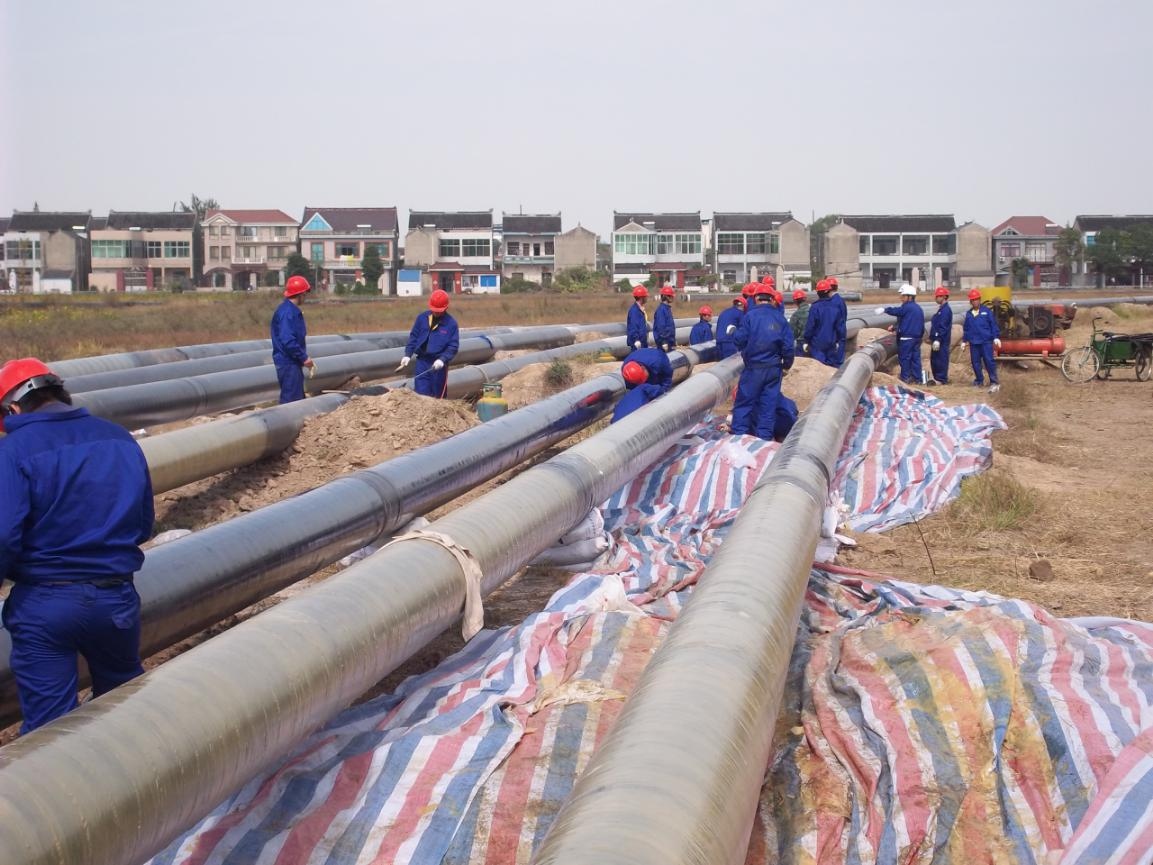

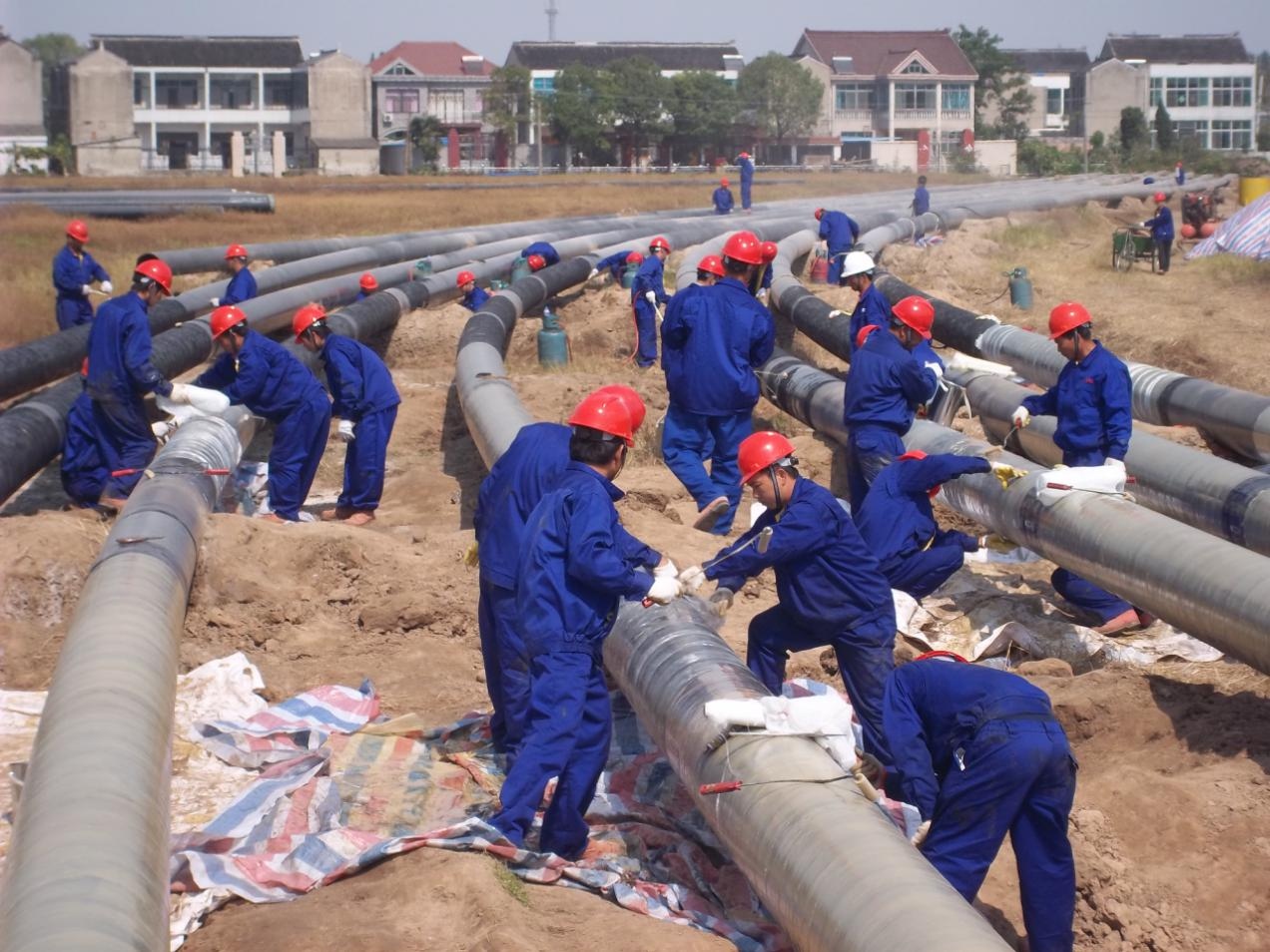

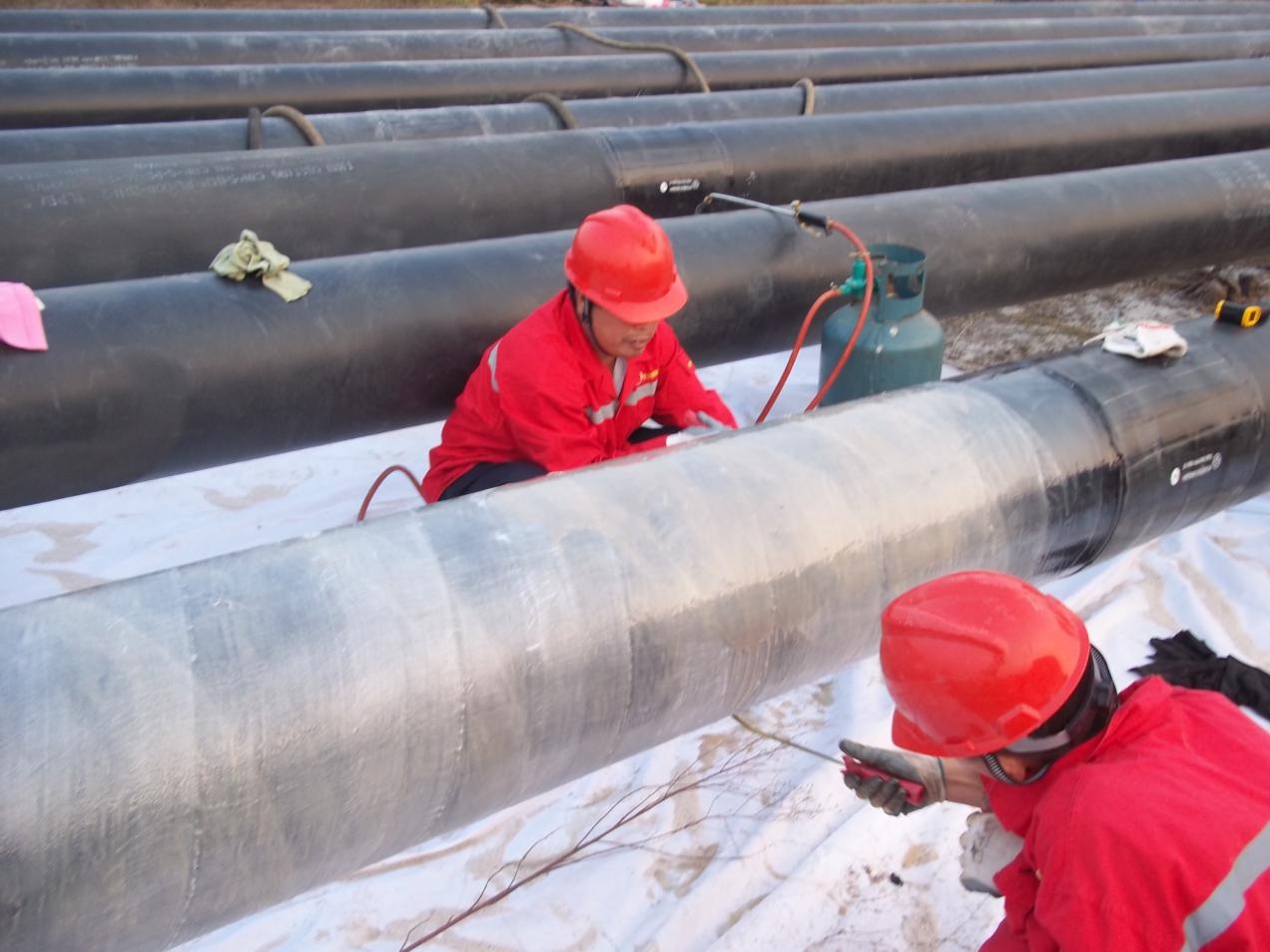

On Site Installation
With high-quality products, easy to operate processes that guarantee quality and quantity, and a professional technical team, our company won the exclusive bid for the 2012 Yangtze River directional drilling crossing fiberglass protective layer bidding project at the Crossing Branch of China Petroleum Pipeline Bureau. To become the construction supplier of epoxy fiberglass reinforced plastic, known as the “first penetration of the Yangtze River” in China.

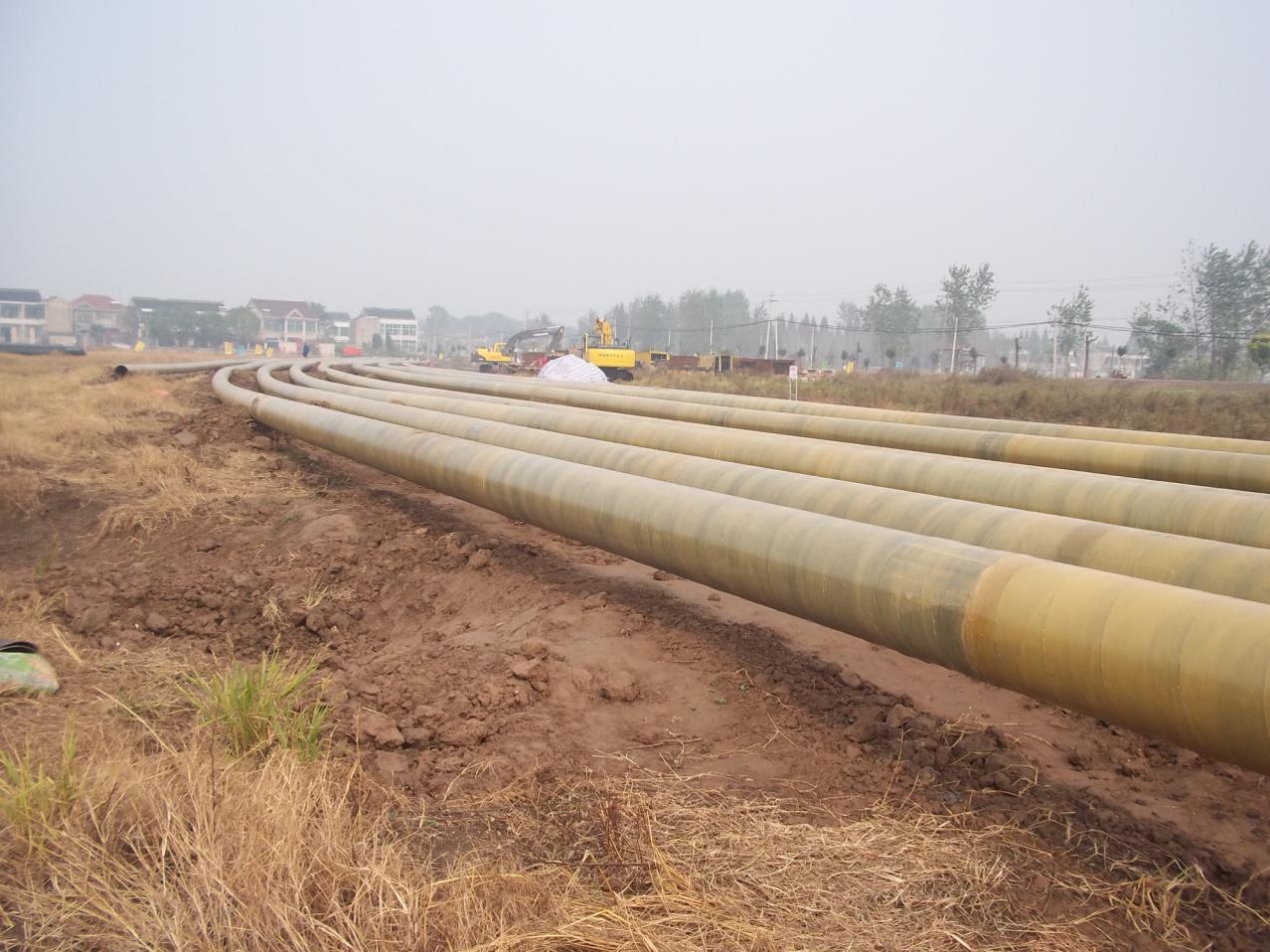

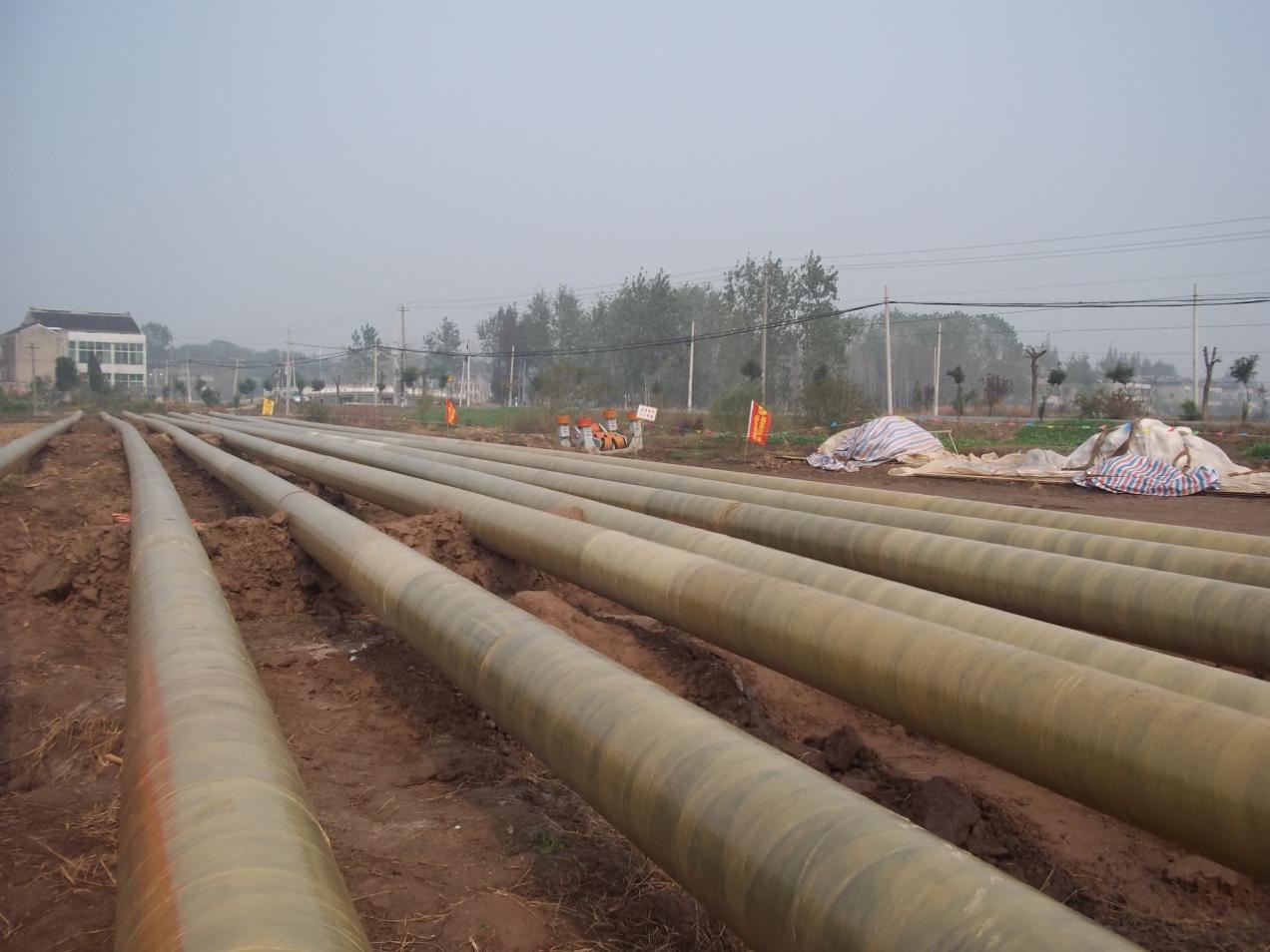

Application Site
Application Site

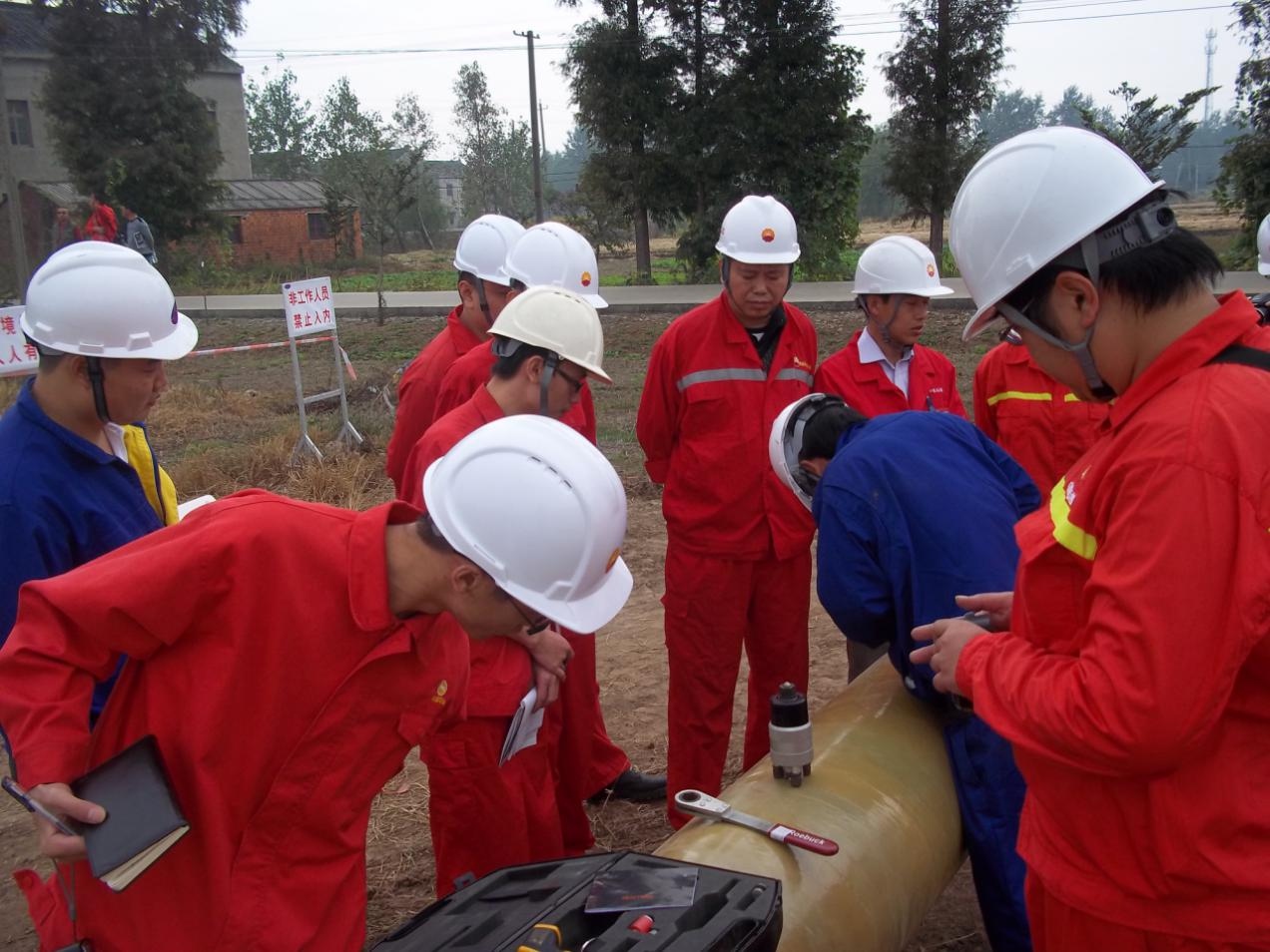

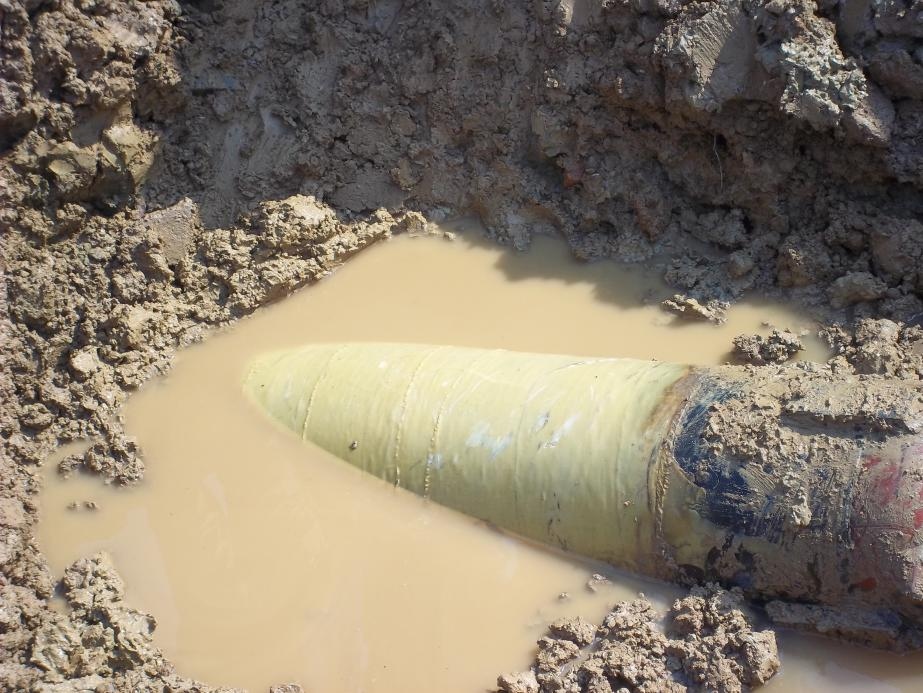

Site Test

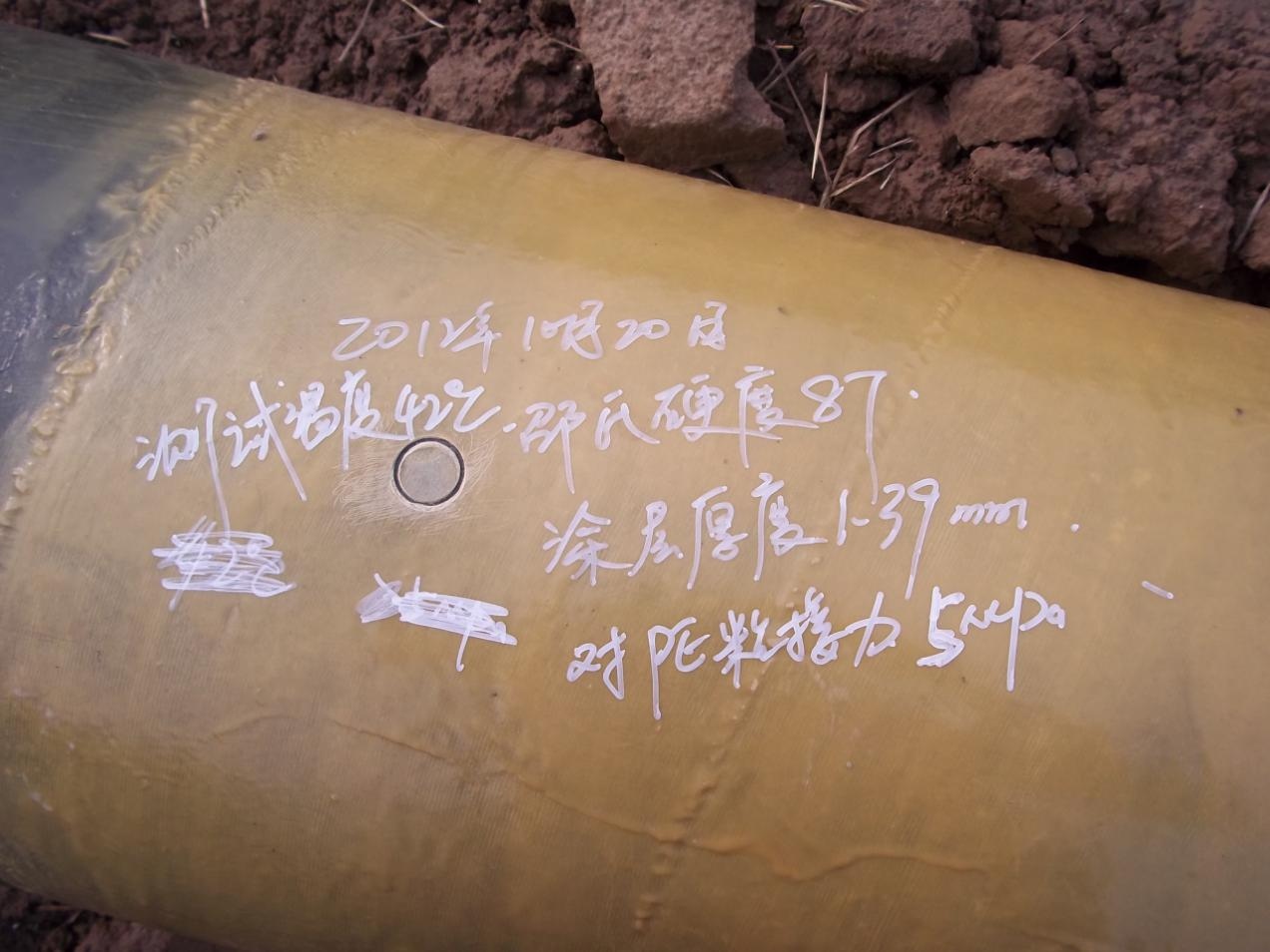

Comparing the FRP epoxy fiberglass structure before and after crossing, it can be seen from the figure that the epoxy fiberglass structure is intact without wear and tear, effectively protecting the anti-corrosion layer!
Customer Usage Report
In the product oil pipeline crossing the Yangtze River (Jingjiang – Jiangyin) project, for the anti – corrosion protection project of the epoxy fiberglass outer layer in the Yangtze River directional drilling crossing, Shenzhen CYG Changtong New Material Co., Ltd.’s FRDP epoxy fiberglass was used for the outer layer protection and anti-corrosion of the 3PE outer layer of the entire pipe and the heat-Shrinkable Tape at the weld. This new material is not only convenient and simple for construction, but also the epoxy fiberglass has good bonding and sealing with the PE layer and the outer layer of the heat – Shrinkable Tape. The bonding strength, hardness, and scratch resistance all meet the requirements of the Technical Specification for Epoxy Fiberglass Outer Anti – corrosion Protection Layer for Directional Drilling Crossing. It has played a good anti – corrosion protection role in the water network (acid – base salt) area!
Unit: EPCC Project Department for the Yangtze River Crossing of Jiangsu Pipeline of China Petroleum Pipeline Bureau
Date: October 31, 2012
Customer Usage Report
In the product oil pipeline crossing the Yangtze River (Jingjiang – Jiangyin) project, for the anti – corrosion protection project of the epoxy fiberglass outer layer in the Yangtze River directional drilling crossing, the epoxy fiberglass from Shenzhen CYG Changtong New Materials Co., Ltd. was used for the outer – layer protection and anti – corrosion of the 3PE outer layer of the entire pipe and the heat – Shrinkable Tape at the weld. This new material is not only convenient and simple for construction, but also the epoxy fiberglass has good bonding and sealing with the PE layer and the outer layer of the heat – Shrinkable Tape. The bonding strength, hardness, and scratch resistance all meet the requirements of the Technical Specification for Epoxy Fiberglass Outer Anti – corrosion Protection Layer for Directional Drilling Crossing. It has played a good anti – corrosion protection role in the water network (acid – base salt) area!
Unit: Yangtze River Crossing Epoxy Fiberglass Supervision Department
Date: November 1, 2012
