Product Description
Alloy Steel Mill Liner Cement Ball Mill Liner in general refers to a kind of casting steel with the chromium content at 2%~6%, the carbon content at 0.3%~1.2%. Cement Ball Mill Liner Alloy Steel Mill Liner’s distinctive feature is to adopt multivariate alloy design. Alloy Steel Mill Liner Cement Ball Mill Liner increases carbide content in the medium carbon alloyed steel, through increasing the Cr & Mo content, the strong carbide forming elements, so as to improve its heat-resisting, wear-resisting performance. As a result, its high strength, strong toughness and good wear resistance properties represent the relatively high level of metal wear resistant materials.
Alloy Steel Mill Liner Cement Ball Mill Liner is widely used for power coal ball mills, cement ball mills.
Specification Available
| Name | Chemical Elements (%) | |||||||
| C | Si | Mn | Cr | Mo | Cu | P | S | |
| High C Cr & Mo Ball Mill Liner ZG90Cr5MoRe | 0.6-1.2 | ≤1.0 | 0.4–1.2 | 4-6 | 0.3-1 | 0-0.5 | ≤0.06 | ≤0.06 |
| Name | Chemical Elements (%) | |||||||
| C | Si | Mn | Cr | Mo | Cu | P | S | |
| Low C Cr & Mo Ball Mill Liner ZG35CrMoRe | 0.3-0.5 | ≤1.0 | 0.6–1.2 | 1.5-2.5 | 0.3-1 | 0-0.5 | ≤0.06 | ≤0.06 |
Physical Property & Microstructure
| Name | HRC | Ak(J/cm2) | Microstructure |
| High C Cr & Mo Ball Mill Liner ZG90Cr5MoRe | ≥48 | ≥15 | M+C |
| Low C Cr & Mo Ball Mill Liner ZG35CrMoRe | ≥42 | ≥50 | M+C |
| M-Martensite C- Carbide | |||
Note: Adjust the chemical content or add other alloying elements of Ball Mill Liner according to customer needs is available.

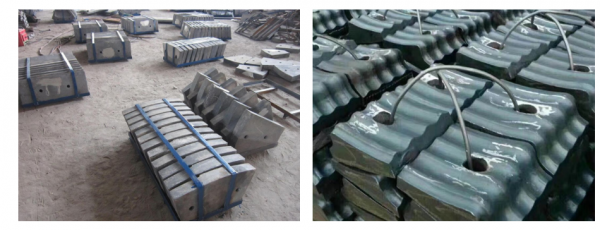

Product Package
● Steel Pallet, Wooden Pallet and Wooden Box
● Customized according to special packing requirement.
