7.50mm Pitch Wire To Board Connector KLS1-XL1-7.50

7.50mm Pitch Wire To Board Connector KLS1-XL1-7.50

Product Information

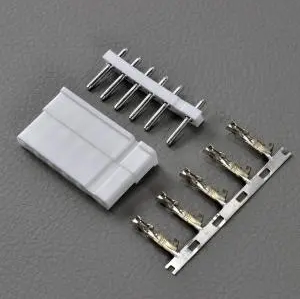

7.50mm Pitch Wire To Board Connector

Order information: KLS1-XL1-7.50-02-H

Pitch: 7.50mm

Pin numbur: 2~6pins

H-Housing  T-Terminal   S-Straight male pin

Specifications

• Material: Nylon66 UL94V0

• Contact: Brass

• Finish: Plated Tin over Nickel

• Current rating: 7A AC,DC

• Voltage rating: 250V AC,DC

• Temperature range: -35℃~+85℃

• Insulationresistance: 1000MΩ/Min.

• Withstanding voltage: 1500V AC/minute

• Contact resistance: 10mΩ/Max.
