| Property | 6061 Aluminum | 6063 Aluminum |
|---|---|---|
| Tensile Strength | 35,000 psi (T4)/45,000 psi (T6) | 25,000 psi (T4)/35,000 psi (T6) |
| Yield Strength | 21,000 psi (T4)/40,000 psi (T6) | 13,000 psi (T4)/31,000 psi (T6) |
| Shear Strength | 24,000 psi (T4)/30,000 psi (T6) | 16,000 psi (T4)/22,000 psi (T6) |
6061 vs 6063: Key Differences
Chemical Composition Overview
When you compare 6061 and 6063, you notice clear differences in their chemical makeup. 6061 contains more magnesium and silicon than 6063. This higher alloying content gives 6061 its strength and hardness. In contrast, 6063 has a lower amount of these elements, which improves its surface finish and makes it easier to extrude into complex shapes.
| Alloy | Magnesium Content (%) | Silicon Content (%) |
|---|---|---|
| 6061 | 0.8 – 1.2 | 0.4 – 0.8 |
| 6063 | Lower than 6061 | Lower than 6061 |
● 6061 has higher magnesium and copper content, resulting in greater strength and hardness.
● 6063 has lower alloying content, enhancing surface finish and ease of extrusion.

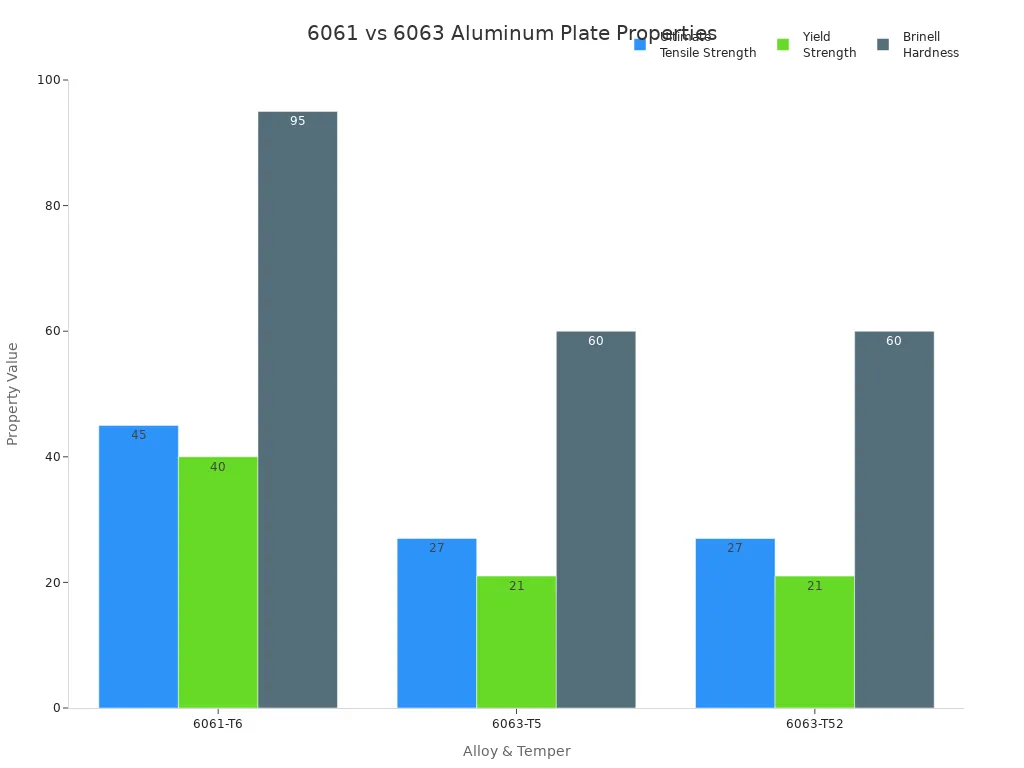

Strength and Hardness Comparison
Strength is one of the main reasons you might choose 6061 aluminum plate over 6063. 6061 aluminum offers higher tensile and yield strength, making it ideal for structural applications where durability matters. The Brinell hardness of 6061 is also greater, which means it resists dents and deformation better than 6063.
| Alloy Type | Yield Strength (psi) | Tensile Strength (psi) |
|---|---|---|
| 6061 T4 | 21,000 | 35,000 |
| 6061 T6 | 40,000 | 45,000 |
| 6063 T4 | 13,000 | 25,000 |
| 6063 T6 | 31,000 | 35,000 |
| Alloy Type | Brinell Hardness |
|---|---|
| 6061 | 95 |
| 6063 | 73 |
You see that 6061 aluminum alloy stands out for its mechanical properties. If your project needs plates that can handle heavy loads or resist wear, 6061 is the better choice.
Formability and Workability
You will find that 6063 aluminum is much easier to form and extrude than 6061. The lower hardness of 6063 allows you to bend and shape it into complex profiles without cracking. This makes 6063 aluminum alloy the top pick for intricate extrusions and decorative trims. On the other hand, 6061 aluminum plate has higher hardness, which can make bending and forming more challenging, but it still performs well in many fabrication processes.
| Processing method | 6061 Extrusion Profile | 6063 Extruded Profile |
|---|---|---|
| Extrusion performance | Moderate, difficult for complex profiles | Excellent, suitable for complex sections |
| Bending & Forming | High hardness, average bending performance | Better softness, suitable for cold bending |
Tip: If your design requires sharp bends or detailed shapes, you should consider aluminum 6063 for its superior workability.Corrosion Resistance
Corrosion resistance is another area where 6063 aluminum excels. You get higher protection from corrosion, especially when the material is anodized. This makes 6063 a favorite for outdoor furniture, irrigation systems, and architectural features. 6061 aluminum also resists corrosion well, but it contains more copper, which can reduce its stability in harsh marine environments.
| Alloy | Corrosion Resistance Rating | Notes |
|---|---|---|
| 6061 | Good | Commonly used in shipbuilding and boat parts |
| 6063 | Higher (especially anodized) | Preferred for outdoor furniture and irrigation systems |
| Aluminum Type | Corrosion Resistance | Copper Content | Performance in Salt Spray Tests |
|---|---|---|---|
| 6061 | Lower | 0.15-0.40% | Less stable in marine environments |
| 6063 | Higher | <0.10% | 15-20% better than 6061 |
● 6061: Good corrosion resistance, commonly used for structural components and marine fittings.
● 6063: Higher corrosion resistance, especially when anodized, suitable for outdoor applications like furniture and irrigation.
Machinability
Machinability can affect your production speed and tool life. 6061 aluminum plate machines quickly and produces less tool wear, which helps you save on manufacturing costs. You get fast cycle times and excellent efficiency with 6061. 6063 aluminum also machines well, but it wears tools faster, especially when you work with extruded profiles.
| Alloy | Tool Wear Rate | Machining Characteristics |
|---|---|---|
| 6061-T6 | Low | Fast cycle times, excellent cost efficiency. |
| 6063 | Higher | Machines quickly; best for extruded profiles. |
Note: For high-volume machining or when you need tight tolerances, aluminum 6061 is the preferred option.
6061 Aluminum Plate vs Aluminum 6063: Comparison Table
When you compare 6061 aluminum plate and 6063 aluminum, you see clear differences in their mechanical and physical properties. You need to consider these differences to select the right plate for your project. The table below gives you a quick reference for the most important characteristics.
| Property | 6061 Aluminum Plate | 6063 Aluminum Plate |
|---|---|---|
| Yield Strength (T6) | 40,000 psi | 31,000 psi |
| Tensile Strength (T6) | 45,000 psi | 35,000 psi |
| Brinell Hardness | 95 | 60 |
| Corrosion Resistance | Very good (suitable for outdoor use, especially anodized) | Excellent (ideal for exposed, architectural, or marine environments) |
| Machinability | Excellent (easy to cut, drill, and machine) | Good (softer; requires care to avoid surface marks) |
| Weldability | Excellent (strong, clean welds) | Very good (welds easily; strength can decrease unless heat-treated) |
| Extrudability | Good (best for simpler shapes) | Outstanding (ideal for complex, thin-walled, or intricate profiles) |
| Thermal Conductivity | Lower than 6063 | Higher (preferred for heat sinks and electrical applications) |
| Surface Finish | Good (decent for most uses, but less smooth) | Superior (smooth, shiny, and perfect for anodizing) |
| Main Alloying Elements | Magnesium, Silicon, Copper | Magnesium, Silicon |
You can see from the table that 6061 aluminum plate offers higher strength and hardness. You get better machinability and weldability with aluminum 6061, which makes it a top choice for structural and mechanical applications. On the other hand, 6063 aluminum provides superior corrosion resistance and surface finish, which is why you often use it for architectural and decorative projects.
Tip: Use this table as a quick guide when you need to decide between these two popular aluminum alloys for your next plate project.
Applications of 6061 Aluminum Alloy and Aluminum 6063
6061 Aluminum Plate Uses
You often select 6061 aluminum plate for demanding structural and engineering applications. Its exceptional strength-to-weight ratio and remarkable toughness make it a top choice in industries where durability and reliability matter. You see 6061 used in aerospace, automotive, marine, and general engineering sectors. The lightweight nature of 6061 aluminum helps improve fuel efficiency and payload capacity in aircraft and vehicles. You also benefit from its superior machinability and natural corrosion resistance, which support long-term performance in harsh environments.
Here is a quick overview of common 6061 applications:
| Application Type | Examples |
|---|---|
| Structural Applications | Truck frames, rail coaches, military bridges |
| Marine Applications | Ship building, marine fittings, motorboats |
| Aerospace Applications | Helicopter rotor skins, fuselage frames, wing spars |
| General Engineering | Furniture, exercise equipment, boilermaking |
| Automotive Manufacturing | Engine blocks, brake parts, chassis elements |
You can rely on 6061 for projects that require both strength and versatility.
Aluminum 6063 Plate Uses
You choose aluminum 6063 when you need excellent extrudability and a smooth surface finish. This alloy stands out in architectural and decorative applications, where appearance and corrosion resistance are critical. The ability of 6063 to form complex profiles makes it ideal for window frames, door trims, and curtain walls. In marine environments, you use 6063 for ship hull structures and deck components, especially where exposure to moisture is constant.
Key applications for 6063 include:
● Window frames and architectural trim
● Ship hull structures and deck components
● Non-load-bearing parts like portholes and ship containers
● Upper outfitting in construction projects
The versatility of 6063 aluminum allows you to achieve intricate designs while maintaining durability and resistance to oxidation. You find this alloy essential for modern architectural features and marine outfitting.
Tip: Choose 6063 when your project demands complex shapes, a flawless finish, and high corrosion resistance.
Choosing the Right Aluminum PlateFactors to Consider
When you face the decision of choosing between 6061 and 6063, you need to weigh several important factors. Each project has unique requirements, so you should match the alloy’s properties to your specific needs. Here are the main points to evaluate:
● Strength: If your project demands high strength and durability, 6061 stands out. You get higher yield and tensile strength, which makes it ideal for load-bearing structures.
● Corrosion Resistance: For environments exposed to moisture or chemicals, 6063 offers superior corrosion resistance. This property makes it a strong candidate for outdoor and marine applications.
● Workability: When your design involves complex shapes or detailed extrusions, 6063 provides excellent extrudability. You can form intricate profiles with ease.
● Aesthetic Requirements: If you want a smooth, attractive finish, 6063 is easier to anodize and color. This makes it perfect for visible architectural features.
You should also consider cost, availability, and the required mechanical properties. 6061 aluminum plate is often more available for structural uses, while 6063 aluminum is preferred for architectural projects due to its finish and corrosion resistance.
| Factor | 6061 Aluminum | 6063 Aluminum |
|---|---|---|
| Strength | Higher yield and fatigue strength | Lower strength compared to 6061 |
| Corrosion Resistance | Good, but less than 6063 | Superior corrosion resistance |
| Workability | Good extrudability and machinability | Excellent extrudability |
| Aesthetic Quality | Less suitable for aesthetic finishes | Easier to anodize and color finishes |
Tip: Always match the alloy’s strengths to your project’s most critical requirements. This approach ensures you get the best performance and value.
You see clear differences between 6061 and 6063. Review the table below for a quick summary:
| Property | 6061 Aluminum | 6063 Aluminum |
|---|---|---|
| Strength | Higher | Lower |
| Best Use | Structural | Architectural |
● Consult with industry experts to select the right aluminum for your project.
FAQ
What is the main advantage of 6061 aluminum plate?
You get higher strength and better machinability with 6061.
Tip: Choose 6061 for structural parts that need durability and precision machining.
When should you use 6063 aluminum plate?
You should use 6063 for projects that require complex shapes and excellent corrosion resistance.
● Architectural trim
● Outdoor furniture
● Marine fittings
Can you weld both 6061 and 6063 aluminum plates?
You can weld both alloys easily. 6061 provides stronger welds, while 6063 offers a smoother finish after welding.
