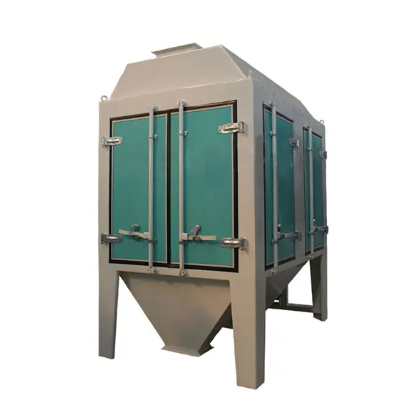

5XP-S Drum Type Pre-Cleaner Seed Pre-Cleaning Machine For Soybean Paddy

Introduction

5XZP-S Series Drum Type Pre-Cleaner has single durm screen, it can effectively separate the light impurities, big impurities or small impurities from the grains. With the inclination angle screen drum and the independent support plus the aspiration device, the pre-cleaner is featured with steady operation and good cleaning effect. We can provide pre-cleaner for different grains with different screen size at different capacity.

Features

● High capacity for cleaning larger impuruty or smaller impurity ● Heavy duty roller support system for high throughput operation ● Extended drum length ensures cleaning efficiency ● Reliable roller chain drive mechanism for stable processing ● Dust cover structure ready for hooking up into central cleaning system ● Laser cutting applies to sheet metal components for quality and accuracy ● Carbon dioxide gas shielded welding workmanship ● CNC machining centers ensure precise fabrication ● Powder coated parts and components for best quality and duration

Technical  Parameter(5xzp-S Pre-Cleaner)

Category 5XZP-85/100S 5XZP-100/125S 5XZP-125/150S 5XZP-125/250S 5XZP-125/320S
Rotate Speed(r/min) 17 17 15 15 15
Transmission power(kw) 1.5 2.2 2.2 2.2 3
Fan Capacity(m3/h) 980 1380 1820 2250 2680
screen drum specification(mm) Φ850×1050 Φ1000×1250 Φ1250×1500 Φ1250×2500

Φ1250×3200
